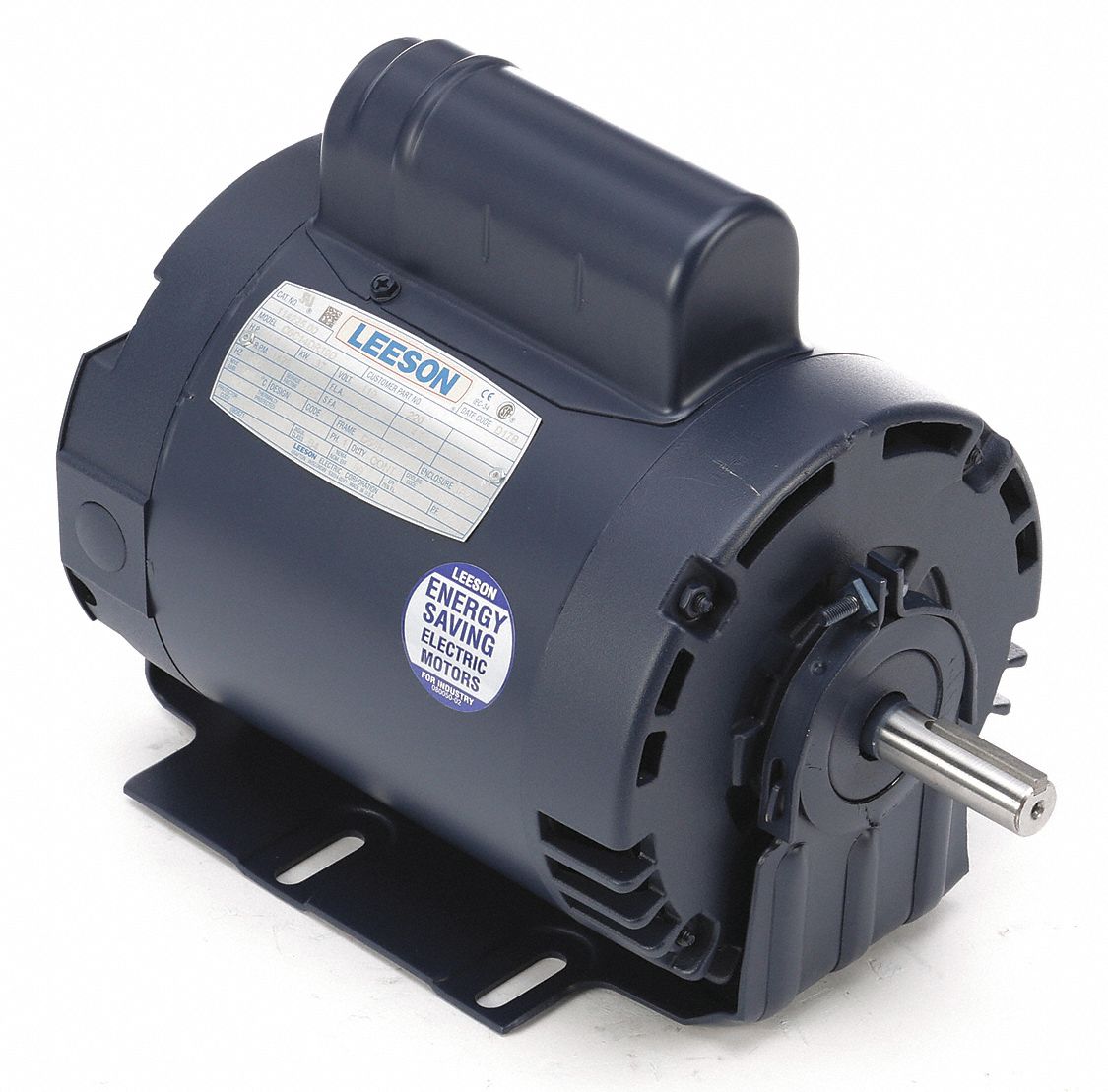

Item Description

50 Hz Motor Single Phase Motor Design Capacitor-Start 1/2 HP Nameplate RPM 1 425 No of Speeds 1 Voltage 110/220V AC Full Load Amps 8.2/4.1 A 56H Frame Usable @ 208V No Usable @ 200V No Hz 50 Hz Motor Service Factor 1.25 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins. Class B NEMA Design None Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Resilient Base Motor Mounting Position Horizontal

Manufacturer Name: LEESON

Manufacturer Part Number: 11422500

Brand Name: LEESON

Country of Origin: United States (US)

National Stock Number: n/a

Unit of Measure: EA

Item Weight: 26.400 pounds

UNSPSC: 26101602 | UPC: n/a

Manufacturer's limited warranty.
