Item Description

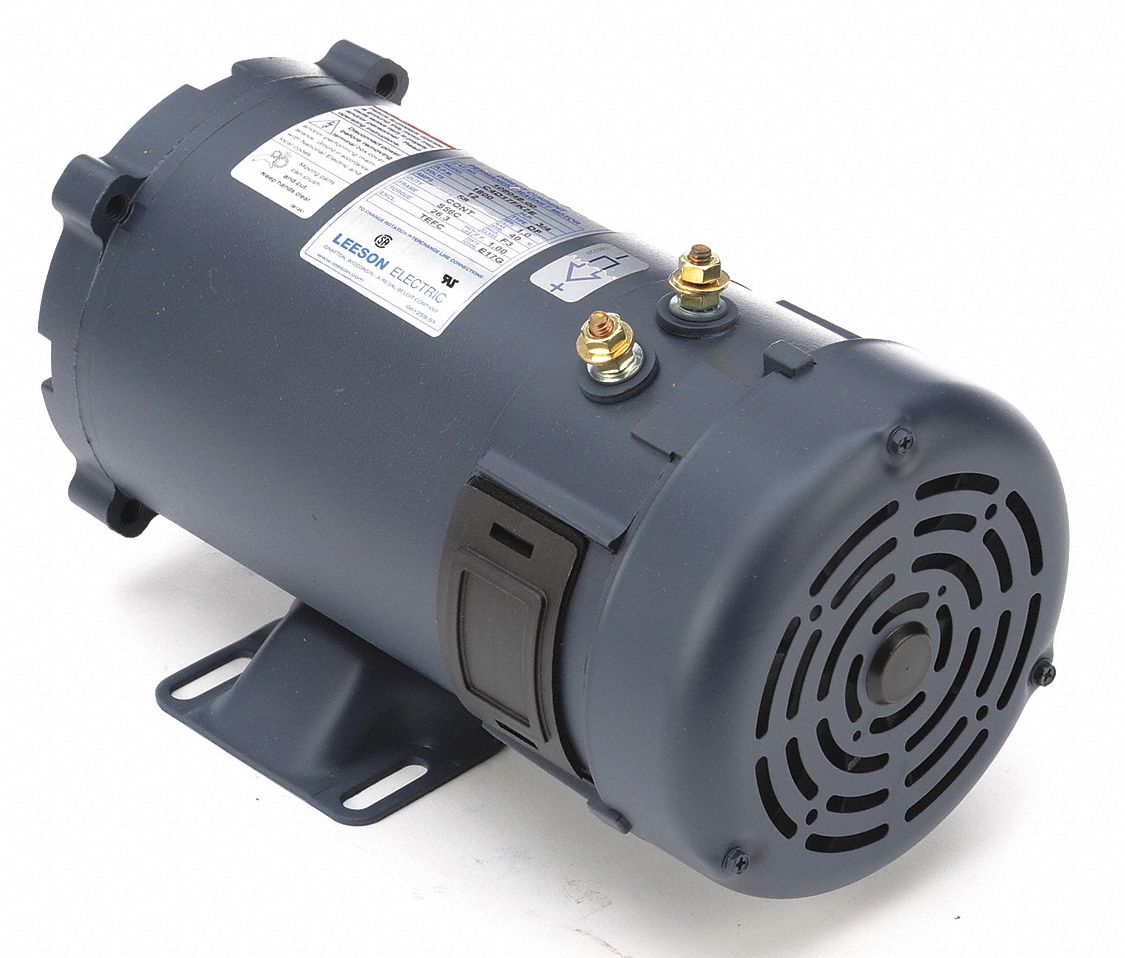

DC Permanent Magnet Motor Motor Design Permanent Magnet DC 3/4 HP Nameplate RPM 1 800 Voltage 12V DC 58.0 A Full Load Amps 56C Frame Full Load Torque 26.3 in-lb Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Motor Shaft Rotation CW/CCW Duty Cycle Continuous Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face/Base Shaft Dia 5/8 in Motor Bearings Ball Shaft Length 1 7/8 in Brush Type External Overall Length 13 5/16 in

Manufacturer Name: LEESON

Manufacturer Part Number: 10804800

Brand Name: LEESON

Country of Origin: United States (US)

National Stock Number: n/a

Unit of Measure: EA

Item Weight: 31.900 pounds

UNSPSC: 26101603 | UPC: n/a

Manufacturer's limited warranty.
