Item Description

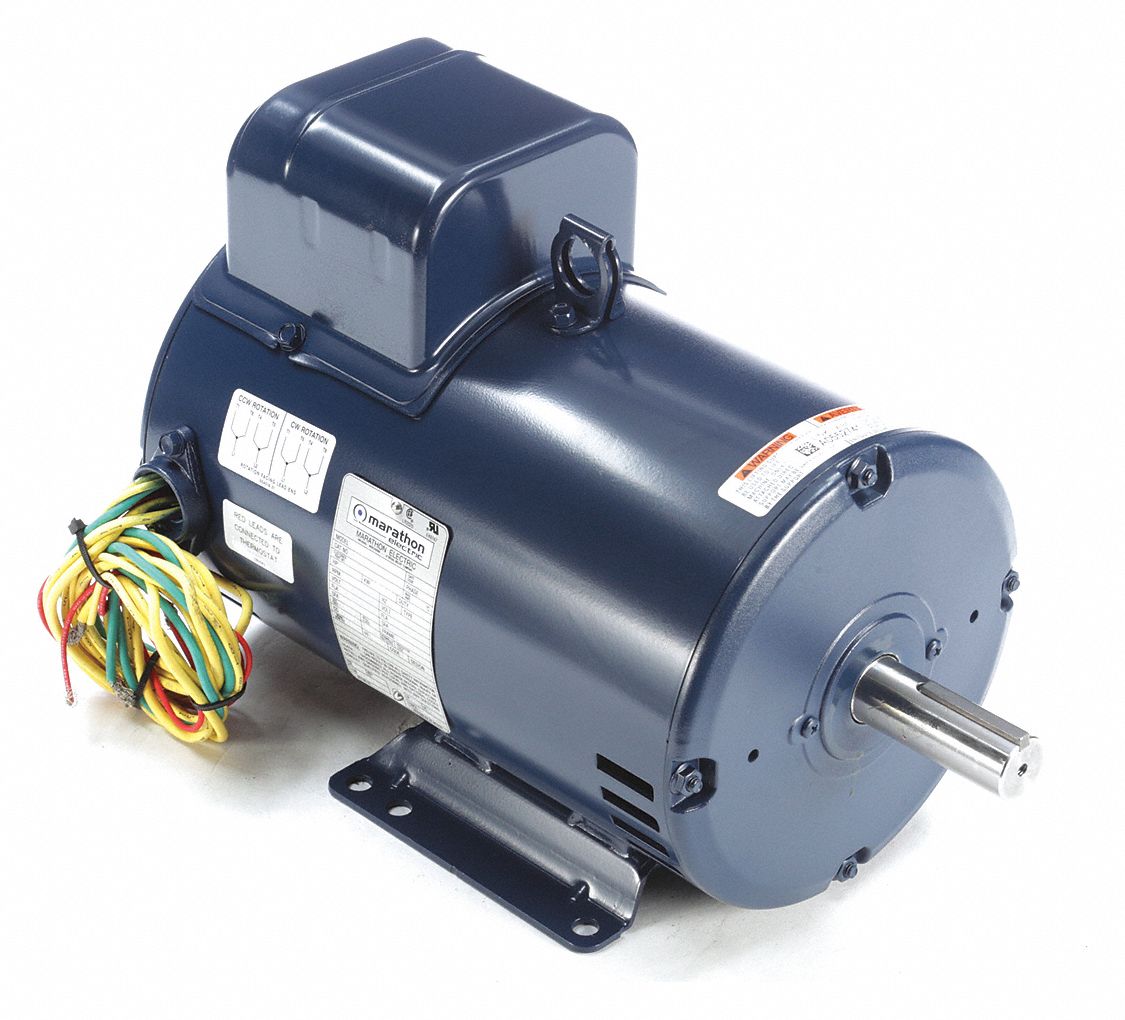

Farm Duty Motor Single Phase Motor Design Capacitor-Start 5 hp HP Nameplate RPM 3 535 RPM No of Speeds 1 Voltage 230V AC Full Load Amps 27.2 A 184TZ Frame Usable @ 208V Not Usable at 208V Usable @ 200V Not Usable at 200V 60 Hz Hz Motor Service Factor 1.4 Motor Thermal Protection T-Stat Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Drip Proof Motor Mounting Type Rigid Base

Manufacturer Name: MARATHON MOTORS

Manufacturer Part Number: 184TCDW7615

Brand Name: MARATHON MOTORS

Country of Origin: Mexico (MX)

Unit of Measure: EA

Item Dimensions: 45.000 inches x 13.500 inches x 36.000 inches

Item Weight: 98.000 pounds

UNSPSC: 26101602 | UPC: n/a

Manufacturer's limited warranty.
